Dual Mode BLE Mesh Products: Light bulbs, LED Strips, Wall Switch, Recessed light



• Dual Mode Smart Remote (Model Number: B2E-G7F):

Video for setup with Remote:  Quick User Guide For Bulb Pair With Remote

Sengled Dual Mode Bluetooth LED bulbs offer two easy solutions: with remote or app-controllable smart lighting in your home.

These bulbs enable you to control your lights in multiple ways—group, on/off, dimming, group, etc.

Illustration:



Important Safety Information:

Before installing the Sengled Smart Bluetooth LED bulbs, please read

and follow all precautions, including:

• Turn off power before installation or removal. Discontinue use if damaged
• Warning: risk of electric shock. Do not attempt to disassemble the bulb
• Not suitable for use with wall dimmers
• Suitable for use in an operating environment between
• -4°F and 104°F (-20°C and 40°C)
• Not for use in emergency lighting
• Indoor use only

Wireless Specification：

Wireless Frequency Range: 2402~2480MHz

Operating channels: CH0~CH39

Maximum Transmitted Output Power: 10dBm

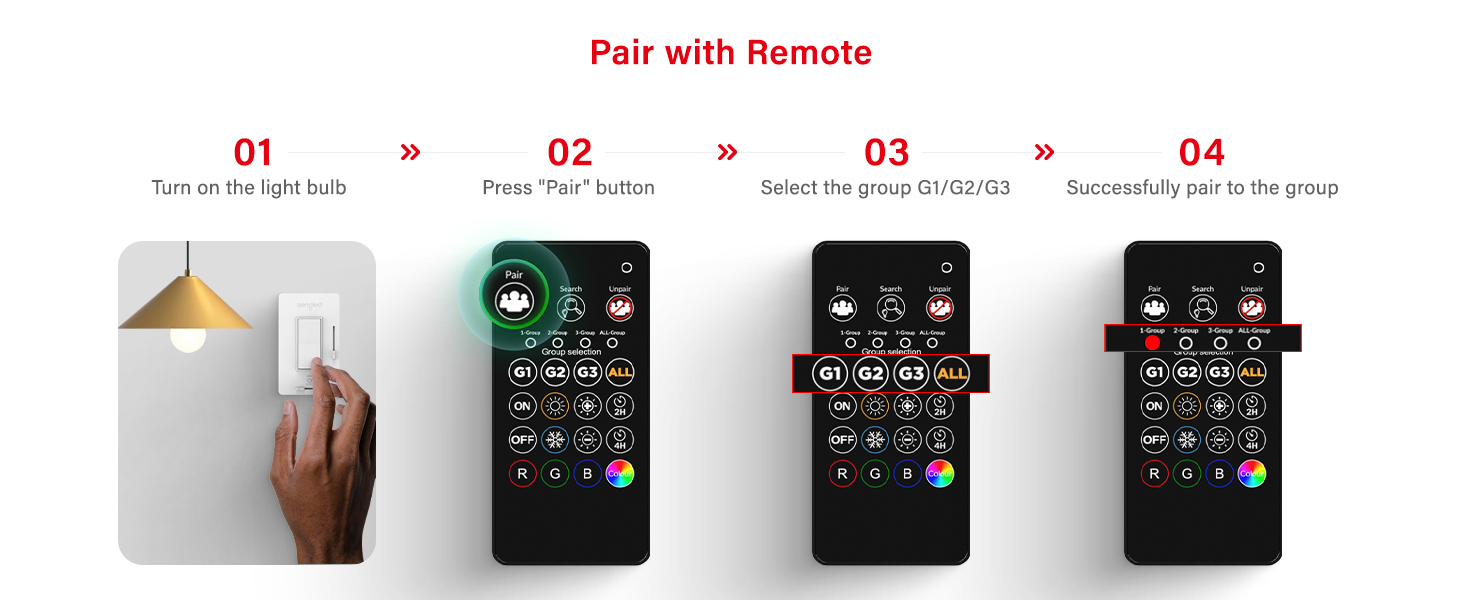

Use with Sengled remote (Model Number: B2E-G7F):

1. Turn on the light bulb.
2. Press the Pair button.
3. Select the groups G1, G2, and G3, and the light bulb will pair to the group.
4. Select the group the bulb is paired with, and control the light bulb with On/Off, dimming, CCT, RGB and color button.
5. If you want to control another group, push the group and follow step 3.
6. If you want to pair the bulb with another group, you need to un-pair the group where the bulb is located. Push the un-pair button, and select the group you want to up-pair.
7.  You can use the search button to select the bulb want to pair to the group.

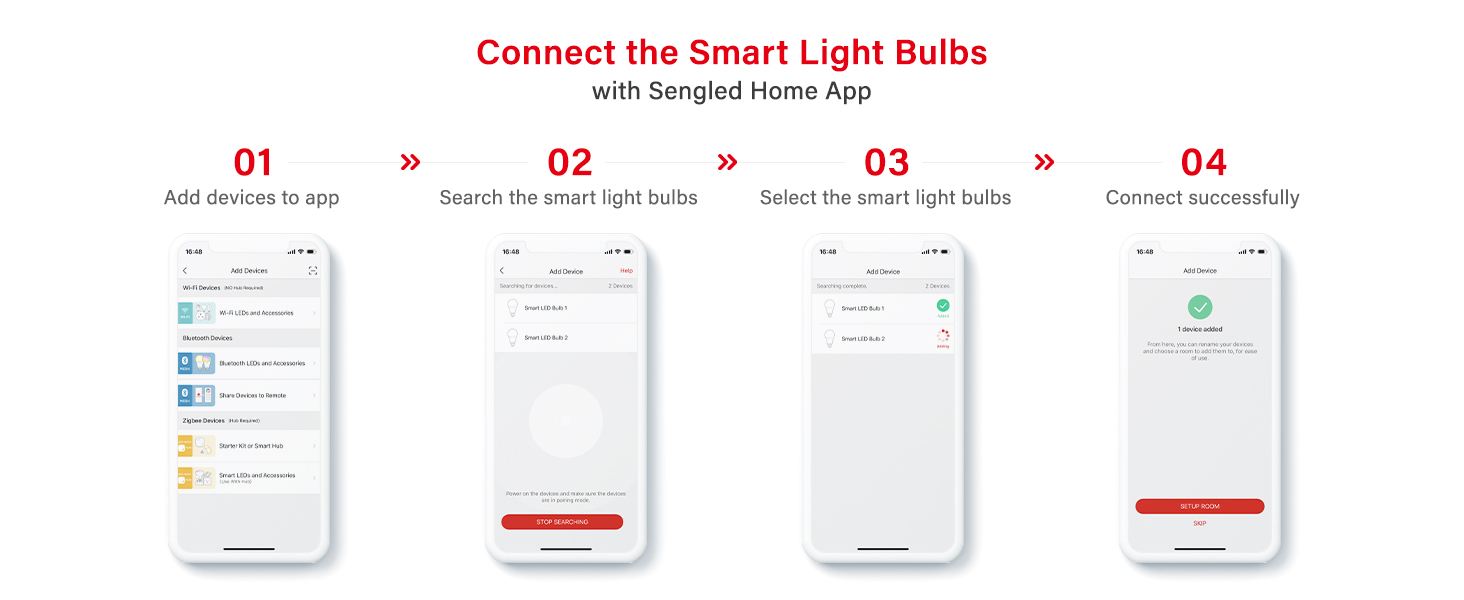

Use with Sengled Home app



Step 1；Download app

Get the Sengled Simply Smart app from the Apple App Store or Google Play.

Step 2: Add to the app

Tap the Add Devices button in the app and select Bluetooth LEDs and Accessories

STEP 3: Screw IN & POWER UP

Follow the app instructions to complete the setup.

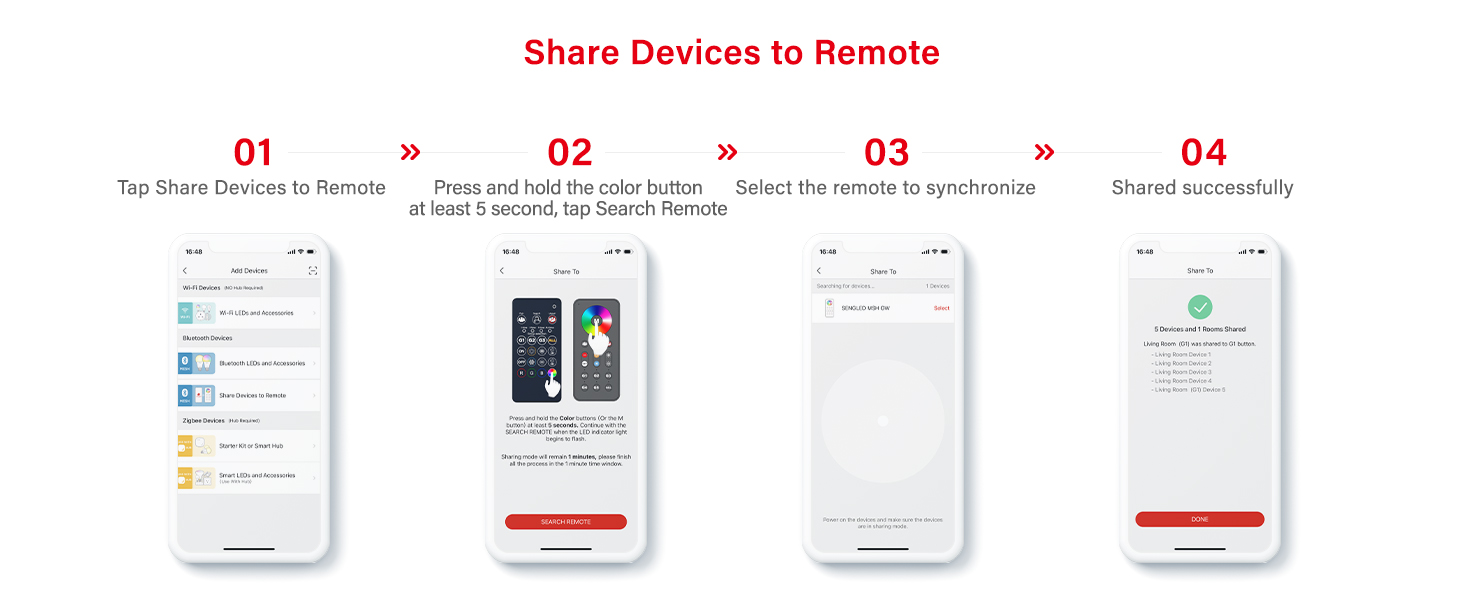

Use with Sengled home app and remote together:



Step 1:Tap Share Devices to Remote

Step 2: Press and hold the color button for at least 5 seconds, and tap the Search Remote button

Step 3:Select the Remote to synchronize



Reset Instructions:

To reset your Smart LED bulb, ensure that the bulb is on and then quickly turn the bulb off and on at least 5 times (using a light switch or power bar works best). If the reset is successful, the bulb will flash three times. If it does not flash three times, you will have to try again.

Once successfully reset, please try to pair it in your Sengled Home App again.



Operation:

The following section outlines some of the popular operational modes of the Sengled Simply Smart LED bulbs.

1. On / Off
2. Dimming
3. Tuning Whites (apply to CCT tunable bulb)
4. Changing Colors (apply to multicolor bulb)
5. Group control
6. Schedule
7. Sunrise Sun-set

Schedule and Sun-rise Sun-set functions need to be created with the Sengled home app.

B

Frequently Asked Questions:

1. Can I use the Sengled Bluetooth Mesh app to set up and control this Bluetooth bulb?

No. Sengled Bluetooth Mesh app does not support Sengled Simply Smart bulb.

2. Can I connect the Sengled Simply Smart Bluetooth bulb to Echo devices and then use the Alexa app to control it?

No. The Simply Smart bulb cannot connect to the Echo device and is used with the Alexa app.



• Dual Mode Smart Wall Switch (Model Number: B2E-G7B)

1. How to set up the Sengled Bluetooth Wall Switch?

Illustration:

A. If you have the Sengled Remote(MN: B2E-G7F), you can set the Wall Switch up directly.

    a1: Set Wall switch in paring mode(prefer #2)

    a2: The same as setup bulbs with Sengled Remote to add Wall Switch, when Wall Switch indicator LED blinking twice in one second, which means the Wall Switch paired with remoter successfully, and the indicator will keep on for about 8 sec and run into standby mode with LED off.

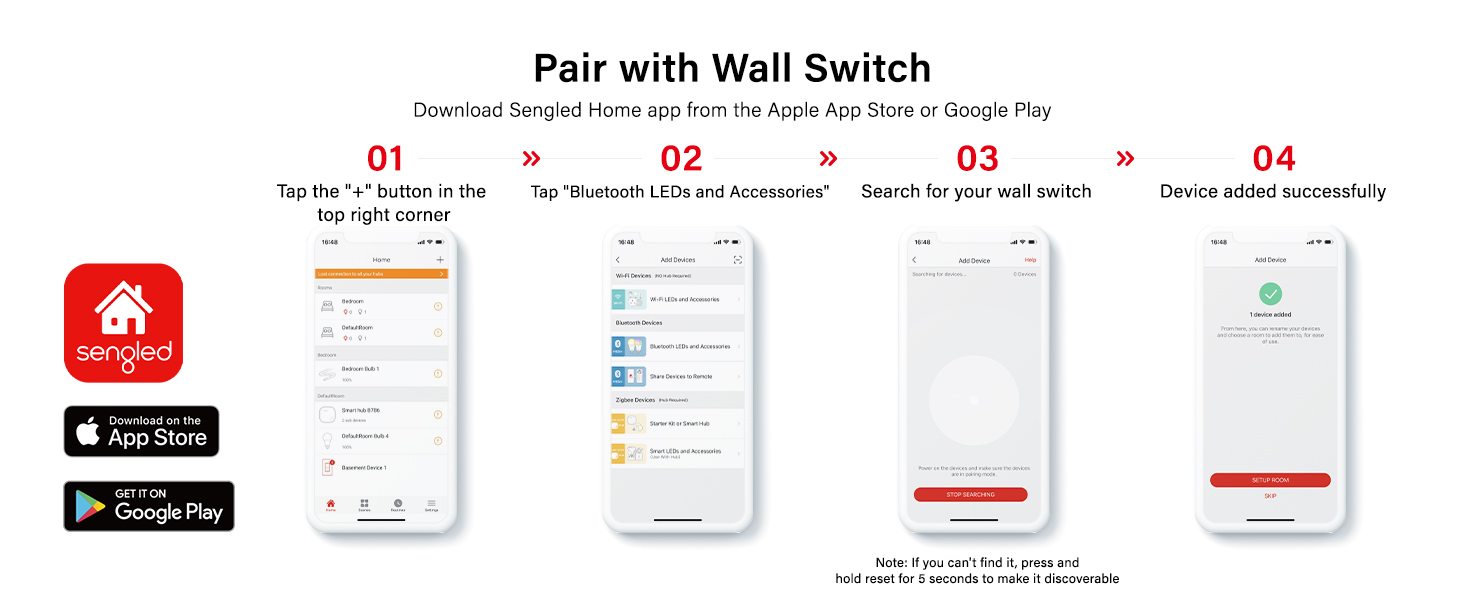

B. The Sengled Home app is also compatible with setting up this Wall Switch.

    b1: open Sengled Home App and click "+" in Right Corner and select "Bluetooth Devices" to add this Wall Switch.



2. How do I reset the Smart Wall Switch?

Press and hold the reset button for at least 5 seconds until the indicator flashes four times. After about ten seconds, the device will enter pairing mode, indicated by a red light blinking at a frequency of blinking with 1s interval.

3. How long is the pairing mode window period, and what should I do if I want to join a network after this period expires?
The pairing window lasts for 2 minutes. If this period expires, you can manually reset the Wall Switch or reinstall the battery to re-enter pairing mode.

4. How long will the device enter hibernate mode?
In an unpaired mode, the red indicator will turn off within 2 minutes, and the device will enter hibernate mode.
In a completed paired mode, if there is no control operation within 8 seconds, the device will enter hibernate mode.

5. If the room assignment fails while using the Sengled Home app to add a Wall Switch, which group of lights will the Wall Switch control?

The Wall Switch will control all the lights.

6. Can I add multiple Wall Switches at once using the Sengled Home app?

No, you can only add one Wall Switch at a time, and it cannot be added simultaneously with other BLE mesh devices.

7. How can I change the room of the Wall Switch via the app?

The room assignment cannot be changed through the app. It must be assigned during the pairing process. To change the room, you will need to reset the Wall Switch and re-add it.

8. Can the Sengled Home app or Remote Control delete the Wall Switch?

No, the Sengled Home app and Remote Control cannot delete the Wall Switch. Although the device may no longer be visible in the app after deletion, the Wall Switch remains active and must be reset manually.

9. What should I do after replacing the battery?

Wait 5 seconds after replacing the battery before operating the Wall Switch.

10. indicator LED blinking mode:
1)blinking with 1s interval: means in pairing mode

2)blinking with 0.5s interval twice: means wall switch setup with the app or remote successfully

Limited Warranty:

2-year limited warranty from the original purchase date. Sengled restricts warranty service for smart home devices to the country where Sengled or its authorized retailer originally sold the device. To learn more about the Limited

Warranty for Sengled products, please visit

www.sengled.com/warranty.



For FCC and IC Statement details, reference

www.sengled.com/fcc



Support:

If you encounter any issues, please visit the following website for web support:

https://support.sengled.com/

or Send emails to:

Support@sengled.zendesk.com
